Zeiss Optics, Conquest V4 3-12X56 SFP Rifle Scope, #60 Illuminated Reticle
Zeiss Optics, Conquest V4 3-12X56 SFP Rifle Scope, #60 Illuminated Reticle

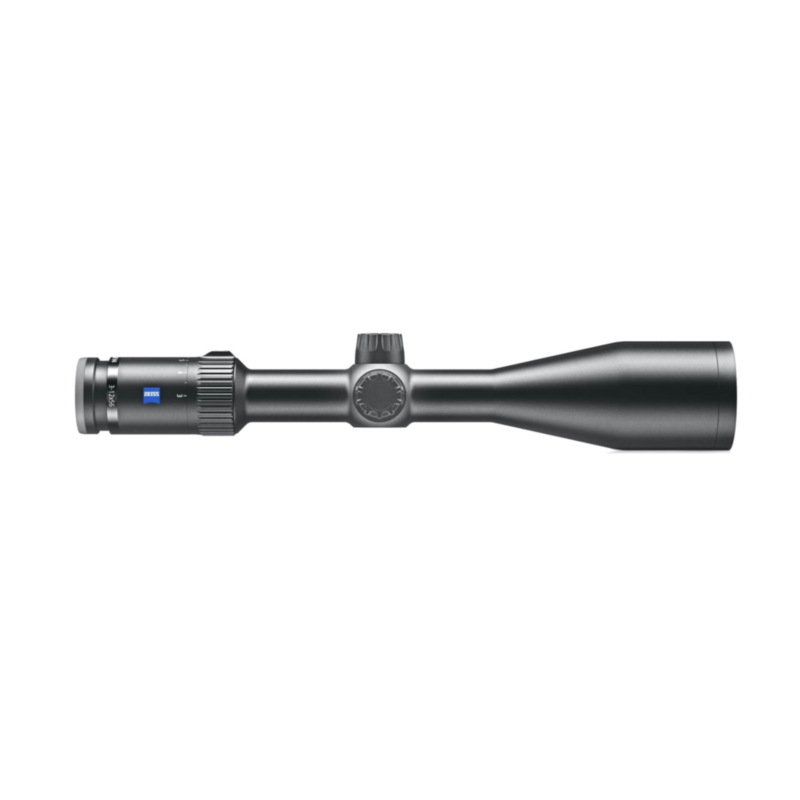

ZEISS Conquest V4 3-12x56
Reliability in everyday hunting. Even under toughest conditions.
The Conquest V4 line of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design. Their compact design and perfect balance between a wide field of view and large magnification range is ideal for all types of hunting. The V4 models are equipped with a 4x zoom and functional, high-precision, and fully reliable mechanical components.
Special models have a ballistic turret with a wide reticle adjustment range (elevation and windage). As a result, the hunter has the flexibility needed for a variety of different hunting methods. Optional ballistic reticles are also available that allow the hunter to quickly make elevation and azimuth corrections with no mechanical adjustment necessary.
The Conquest V4 3-12x56 is suitable for hunting from a blind both at dusk and at night. Thanks to the large-diameter lens and illuminated reticle, high accuracy is guaranteed – even in low light conditions.
4x Zoom Range
The 4x zoom range allows hunters to perfectly recognize details and offers an excellent overall view for a safe and accurate shot.
A clear view, whatever the weather
There are always exciting things to be seen in the world of nature – even in wet weather. This is why ZEISS developed LotuTec®. A coating for the lenses of binoculars and spotting scopes that enables a clear and unhindered view in all weather conditions.
90% Light Transmission
Higher definition glass produces 90% to-the-eye light transmission, great low-light performance and excellent target resolution across the entire magnification range.
ZEISS T* Coating
ZEISS T* coating is a guarantee of the brilliant, high-contrast images which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.
Reticle Illumination
The reticle illumination can be adjusted finely and accurately over 10 different levels, allowing hunters to precisely adjust the brightness to any situation and time of day – for the perfect shot.
Reticle 60Illuminated
The reticle 60 is lighter and finer than the reticle 40, which was widely used only a few years ago. The bars have only half the subtension of the earlier model and there is twice the amount of free space between them. It is therefore ideally suited for precise shooting with the least possible coverage of the target game. With 12x magnification and a subtension of only 0.55 cm at a distance of 100 m, you always have an excellent overview – no fine details are hidden from view. The illuminated dot is extremely bright and can therefore also be used for daytime hunting. The brightness of the illuminated dot can be dimmed at extremely finely, making it ideal for night hunting as well. The reticle is located in the riflescope’s second image plane.
Performance
|
Magnification |
3 – 12 x |
|
Effective lens diameter |
27.7 – 56 mm |
|
Light transmission |
90% |
|
Exit pupil diameter |
9.2 – 4.7 mm |
|
Twilight factor |
9.1 – 25.9 |
|
Field of view at 100 m (yds) |
12.7 – 3.2 m (38 – 10 ft) |
|
Objective viewing angle |
7.2° – 1.8° |
|
Diopter adjustment range |
+ 2.0 | − 3.0 dpt |
|
Eye relief |
90 mm (3.54 ") |
|
Parallax setting |
91.4 m (100 yds) |
|
Adjustment range at 100 m |
200 cm |
|
Adjustment per click at 100 m |
1/4 MoA (0.7 cm /100 m) |
|
Centre tube diameter |
30 mm |
|
Eyepiece tube diameter |
44 mm |
|
Objective tube diameter |
62 mm |
Features
|
LotuTec | Nitrogen filled |
+ | + |
|
Water resistance |
400 mbar |
Physical
|
Operating temperature |
− 25°C | + 50°C (− 13°F | + 122°F) |
|
Length |
368 mm (14.5 ") |
|
Weight (without inner rail) |
610 g (21.5 oz) |
|
Weight (with inner rail) |
|
