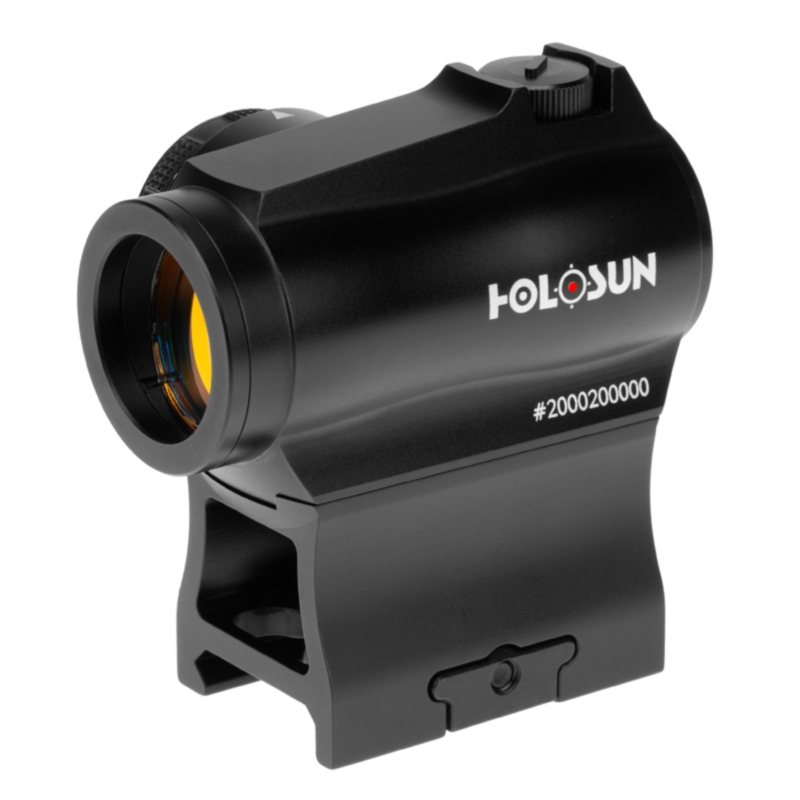

Holosun Optics, HS503R Red Dot Sight, ACSS CQB Reticle
Holosun Optics, HS503R Red Dot Sight, ACSS CQB Reticle
The HS503R is a 20mm micro sight designed for rifle and carbine applications. HS503R features a Rotary switch to select reticle intensity, Holosun’s Red Super LED with 50k hour battery life, and MRS (Multi-Reticle System) with 10 daylight and 2 night vision compatible reticle intensity settings.
The HS503R housing is made from 6061 aluminum and includes both a lower 1/3 co-witness mount (1.63”) and a low mount (.75”) for low-comb height rifle applications. Additional features include Shake Awake technology, rubber lens covers, and a battery compartment integrated into the Rotary switch for the 2032 battery. HS503R is a versatile sight for users of all levels.
SPECS
OPTICAL SPECS
Reticle | ACSS CQB Reticle |
Light Wavelength | 650nm |
Reticle Color | Red |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Magnification | 1x |
Multi-Coatings | Yes |
ELECTRONIC SPECS
Power Source | Battery |
Battery Type | CR2032 |
Battery Life (Hours) | 50000 |
Brightness Setting | 10 DL&2 NV |
PHYSICAL SPECS
Window Size | 20mm Diameter |
Dimension (in) | 2.73×1.53×1.61 |
