General Starlight Company, Quadro-S, Multi-Spectral Fusion System
ESTIMATED DELIVERY 8-10 WEEKS
We will notify you when this item becomes available.

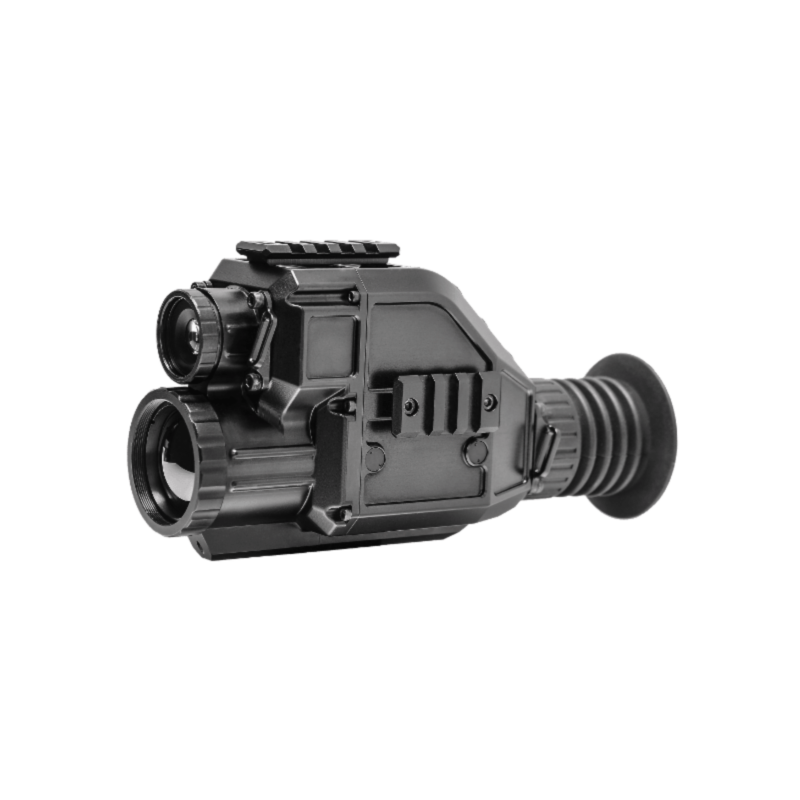

General Starlight Company, Quadro-S, Multi-Spectral Fusion System
QUADRO-S | Multi-Purpose Fusion System | GSCI Advanced Photonics
The QUADRO-S is the augmented vision multi-purpose system for tactical surveillance, observation and engagement at short- and medium-range distances. It is the next big step in the evolution of advanced detection systems.
Thanks to GSCI’s patented multi-sensor technology, the QUADRO-S operates in 5 distinct modes: Thermal, Daytime, Nighttime and two Hybrid views, also known as the Fusion: Day-Fusion and Night-Fusion. On top of that, the QUADRO-S comes loaded with many unique features that offer convenience and help give the operator a tactical advantage.
QUADRO-S Specifications
- FPA Refresh Rate: 9Hz or 50Hz
- Digital Zoom: 2X, 4X, 8X
- Display: Full Size: 0.6-Inch, AMOLED, Colour, 800×600
- Imaging Modes: Monochrome + 8 Colour Palettes
- Digital Video Recorder: Optional: Built-In or External
- Power Source: 4pcs AA and External (e.g. MVP-240)
- Battery Life: Up to 7 hours
- Operating Temperature: -40°C .. +50°C
- Manufacturer’s Warranty: 7 Years, Limited
QUADRO-S Features
The beauty of the QUADRO-S is that with the fusion mode you are never left in pitch darkness.
Both channels, complementing each other to produce real-time, no-lag video image and unmatched situation awareness. This is achieved by combining detailed images from the visible/near infrared and long-wave infrared ranges of spectrum. The end result is a superb detection and recognition capability.
