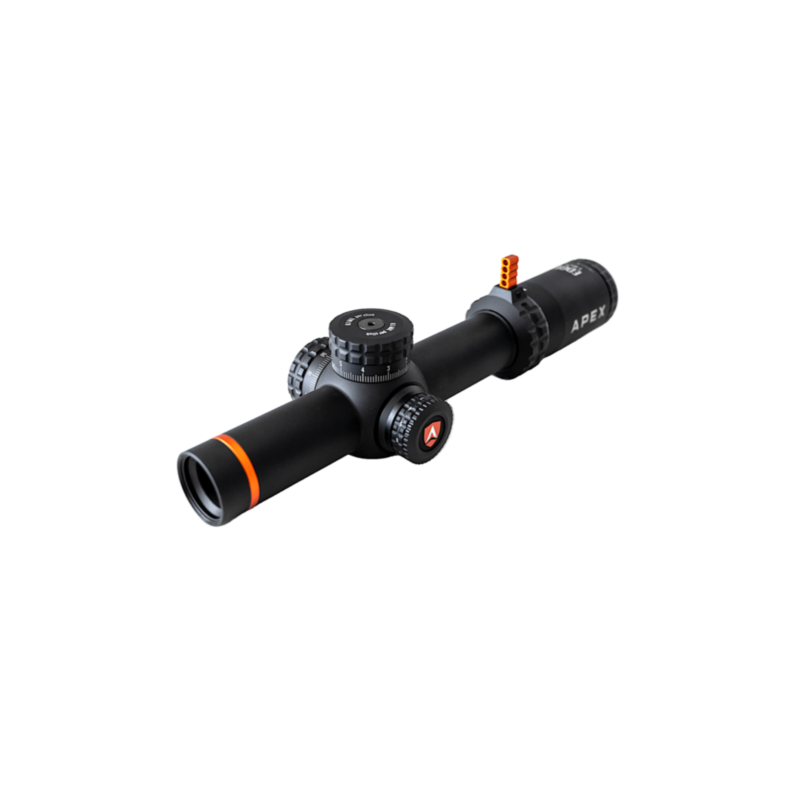

Apex Optics, Edge FFP 1-10x24 Riflescope, HCR Reticle, MRAD
Apex Optics, Edge FFP 1-10x24 Riflescope, HCR Reticle, MRAD
Shipping Summer 2023, Pre-Order today to reserve your new Edge riflescope!
PURPOSE-BUILT COMPETITION AND ALL-PURPOSE LPVO
DESIGNED FOR DYNAMIC LONG RANGE PRECISION RIFLE COMPETITIONS
When we say we make “PURPOSE-BUILT OPTICS”, we mean it!
And why did we choose to call this riflescope the Edge?! Edge-to-edge optical clarity of our lab certified True 1X™, perfect for “both eyes open” shooting without distorting your field of view.
We loaded a lot of features into this ultra-versatile optic, from a locking Zero Stop 10MIL per-turn elevation turret, 40 MILs of internal travel, a locking windage turret, stainless steel internals, fixed parallax at 150 yards , as well as our our integrated removable throw lever and oversized zoom ring.
And the included (HCR) Hybrid Combat Reticle is as innovative as it is useful. Developed with the input from some of the top 3-GUN competitors, hunters, and Special Forces operators, this reticle will give you every piece of data for long range engagements at 5-10X, and quick target acquisition and lightning fast transitions at 1-4X.
DESIGNED AND TESTED IN CANADA, MADE IN JAPAN
We start off with a solid block of 6061-T6 Aircraft Grade Aluminum billet and mill it down to a perfectly concentric 34mm tube.
We then soak it in a proprietary solution so that it exceeds MilSpec Type III Hardness and Abrasion Resistance standards. That’s how it gets that signature matte-black finish.
Our erector system is built with stainless steel components for a positive and distinctive “click”, guaranteeing repeatability and durability for the life of the product. No matter what the M.D. or the elements throw your way, you’ll be confident your riflescope will be up to the task without skipping a beat or getting off-zero.
The optical components are made using the highest quality Extra-Low Dispersion (ED) Japanese glass, which are ground down and polished with state-of-the-art equipment. The optical system uses a set of finely tuned APO (apochromatic) lenses, and when combined with the Prime ED glass provides an unmatched clarity of image, depth of field, and field of view. Every lens is meticulously inspected by our production engineers before it goes into one of our scopes.
Finally, the entire system is inspected once-again, then assembled by hand in a Certified Clean Environment. The final step of the assembly is dry-Argon purging and sealing, ensuring that the entire optical system is shockproof, fogproof, and IP67-rated dustproof and waterproof.
KEY FEATURES
- 34mm MAIN TUBE - Type III Hard Anodized 34mm One-Piece 6061-T6 Aluminum Tube
- 24mm OBJECTIVE LENS - A perfectly balanced LPVO objective lens for light acquisition
- FIRST FOCAL PLANE - First Focal Plane Reticle for Long Range Precision at all distances
- ED PRIME GLASS - Highest Quality Extra-Low Dispersion (ED) Apochromatic Japanese Glass with 99.7% Light Transmission (per lens)
- 7 LAYER MULTI-COATING - Proprietary 7-Layer Glass Coating System provides it toughness, durability, and hydrophobic properties
- ARGON PURGED & SEALED - Dry Argon Purged and Fully Sealed Components for Any Environment
- MRAD TURRETS AND RETICLE - Milliradian Reticle and Turret Combination for Long Range Accuracy and Repeatability, Shot After Shot
- LOCKING ZERO-STOP TURRETS - Stainless Steel LOCKING Zero-Stop Elevation Turret, and Locking Windage gives you the ultimate flexibility with guaranteed repeatability!
- HCR HYBRID COMBAT RETICLE - Our proprietary reticle is the result of 2 years of research and development, perfectly designed for carbine use, lightweight hunting, and competitive shooting disciplines
- FOCUS AT ALL DISTANCES - Generous Eye Relief and a Huge Eye-Box, and a fixed Parallax at 150 yards!
- IP67 WATER AND DUSTPROOF - Certified IP67 Dustproof / Waterproof and Shockproof to 1200 G's
- PRECISION CONSTRUCTION - Precision Constructed and Hand-Assembled in a Certified Clean Room
- SIX SIGMA QUALITY - SIX SIGMA Quality Control System & 3-Step Pre-Shipping Inspection Guarantees that you get a ready-to-shoot riflescope the first time, every time!
- BEYOND MIL-SPEC - Our products meet and exceed MIL-SPEC standards and will satisfy even the most stringent requirements of all civilian, agency, and military users
- DESIGNED BY PROFESSIONALS - Our team is comprised of professionally designated Project Managers, optical engineers, competitive shooters, veterans and LEO's
HCR™ = HYBRID COMBAT RETICLE
When it came time to design the most important aspect of this LPVO we knew that we had to get it right.
When designing this innovative FFP reticle we turned to some of the most experienced competition 3GUN shooters and Special Forces operators that were generous with their time and input!
One of the most important things was to start with our True1X optical system, which doesn’t distort your field of view when shooting with both eyes open, as is common in most carbine, competition, and hunting situations.
The HCR reticle takes the best elements of a prism sight and fuses it with a modified XMAS-tree long-rate shooting reticle. Perfectly blended together, it gives you the ultimate flexibility for any kind of target engagement that your platform will support.
At 1X, the outer and inner “segmented rings” and can be illuminated at your leisure, and will provide you with a generous field of view while giving you rapid target acquisition and lightning-fast transitions.
As you zoom towards 5X magnification, the outer rings start to disappear from your field-of-view and a modified XMAS tree reticle comes into full view, along with the center floating dot and the inner segmented ring.
At 7-10X you can use the XMAS tree like any long-range reticle that you may have shot before, with a full 10 MILs of vertical holdover and 6 MILs of wind hold.
Needless to say, we believe that we have created the world’s finest LPVO, and quite possibly your new favorite optic!
TECHNICAL SPECIFICATIONS
- Purpose-built LPVO for short, medium, and long-range engagements, competitive shooting, and agency use
- Equipped with our stainless steel 10 MRAD per turn Locking Turrets with Zero-Stop
- Proprietary Glass-Etched Apex HCR™ Hybrid Combat Reticle
- 6 Levels of illumination (Red) on the Main Stadia With an “OFF” position between each setting
- The first-in-industry See-Through Integrated Removable Throw Lever
- 0.1 MIL Windage and Elevation Adjustment per Click
- Fast-Focus Eyepiece (+3/-2)
TECHNICAL INFORMATION
- Tube Diameter - 34mm
- Objective Lens - 24mm
- Magnification - 1-10x
- FOV @ 100y - 105.8 – 10.5 ft
- Eye Relief - 3.54" (90mm)
- Exit Pupil - 7.2mm-2.4mm
- Parallax Range - 150y FIXED
- Glass Type - ED
- Light Tx. Rate - 99.7%
- Focal Plane - First (FFP)
- Reticle - HCR
- Reticle Type - Glass Etched
- Elev. Adjustment - 40 MIL
- Wind. Adjustment - 40 MIL
- MILs/Rotation - 10E / 10W
- Turret Rotation - CCW
- Illumination Color - Red
- Illumin. Levels - 6 w/ On-Off
- Length - 11.5" (292mm)
- Weight - 21oz (600g)
- Mounting Length - 6.75" (171mm)
