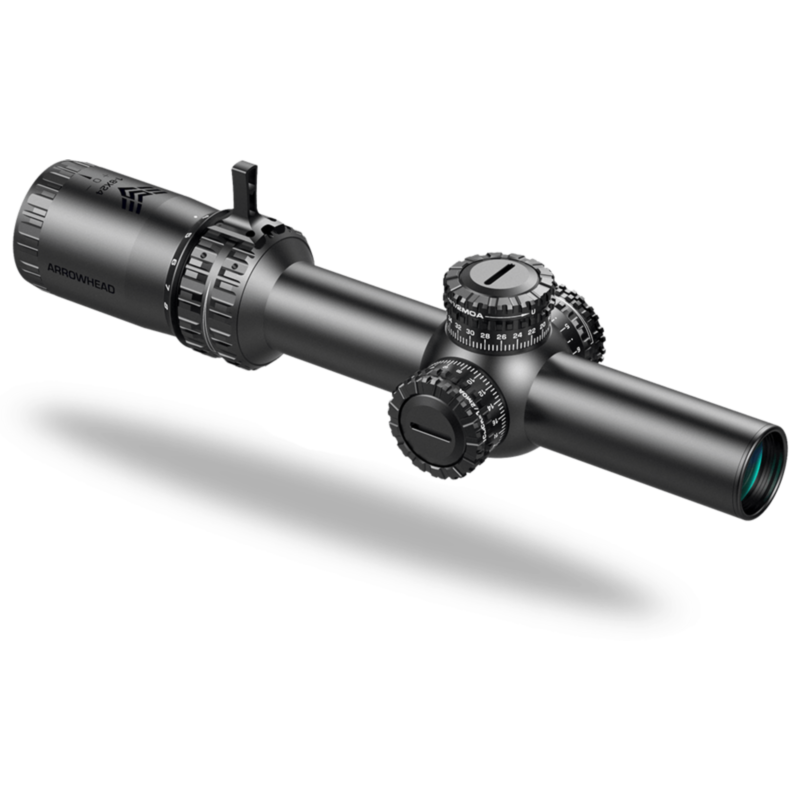

Swampfox Optics, Arrowhead LPVO 1-10x24 SFP Rifle Scope, Red MIL Reticle

CA$799.99
Backorder

ESTIMATED DELIVERY 4-6 WEEKS

In stock
SKU
SFO-ARH11024-RL
-
+

ARROWHEAD LPVO SERIES

The Swampfox Arrowhead LPVO series meets or exceeds every requirement for serious law enforcement and self-defense applications. Locking turrets require no tools to prevent unintentional adjustments. Arrowhead’s state-of-the-art optical design creates a brighter sight picture, a wider field of view, and excellent resolution. Choose from two Second Focal Plane reticles: Guerrilla Dot BDC Long and Guerrilla Dot MOA Long. In addition, Guerrilla Dot MIL Long and green reticle illumination are available in 1-10x Arrowheads only. If you are searching for an affordable LPVO that checks all the boxes needed for duty use, you just found it: the Swampfox Arrowhead.

SECOND FOCAL PLANE

Second Focal Plane construction provides a consistent reticle size at all magnifications. The result is an instant, familiar sight picture for unbeatable speed when it counts most-- from close quarters distance out to 200 yards.

INCLUDED THROW LEVER​

You need to be at maximum magnification to use the medium range holdovers, so Arrowhead's included throw lever lets you slap your magnification to the max in a heartbeat. Arrowhead's lever attaches directly via four bolts—there's no ring to slip or loosen over time.

GUERRILLA DOT MIL LONG RETICLE

Available only in the 1-10x Arrowhead, “Guerrilla Dot MIL Long” is our first partially illuminated LPVO reticle. Paired with 0.1 MIL-per-click locking turrets, this reticle offers 10 MIL of vertical holdover and a visually symmetrical presentation. Like our MOA reticles, Guerrilla Dot MIL Long is compatible with any caliber with the help of a quality ballistic calculator (our favorite is StrelokPro, which has all Arrowhead reticles built right into it). Shooters who prefer Milliradian math, this is the integrated reticle/turret system you’ve been asking

SPECS

Magnification

1-10x

Tube Diameter

30mm

Objective Lens Diameter

24mm

Exit Pupil (mm)

8.0mm-2.3mm (1X-10X)

Eye Relief (in)

3.46-3.54" (1X-10X)

FOV @ 100 Yards (ft)

115.6-11.5' (1X-10X)

Click Value

1/2 MOA or 0.1 MIL (reticle dependent)

Parallax Setting

100 yds

Travel Per Rotation

60 Clicks/ 30 MOA

Max Elevation Adjustment

100 MOA

Max Windage Adjustment

100 MOA

Lens Coating

Fully Multi-Coated/ Anti-fog/ Hydrophobic

Illumination

12 Position Illumination Turret

Battery

Side-mounted CR2032 Battery

Reticle

BDC or MOA Glass Etched Illuminated

Magnification Required for Reticle Accuracy

10x

Fast Focus Diopter

Yes, -2 to +2

Turret Style

Push/Pull Locking Turrets with Zero Reset

Length

10.91"

Weight

20.36 oz

Waterproof Rating

IPX7

Impact Resistance

1,100 G Forces
